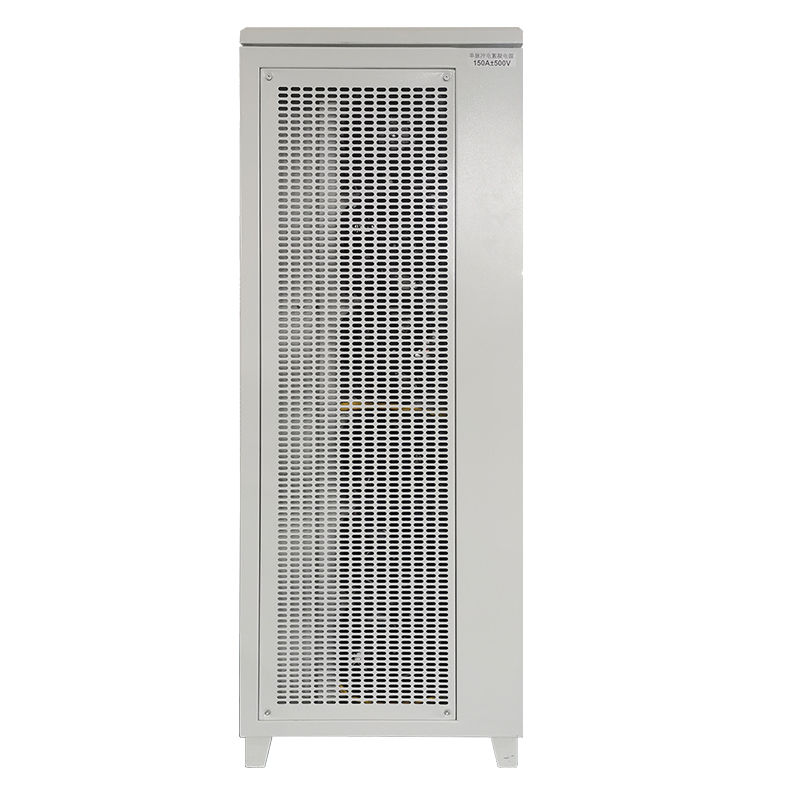

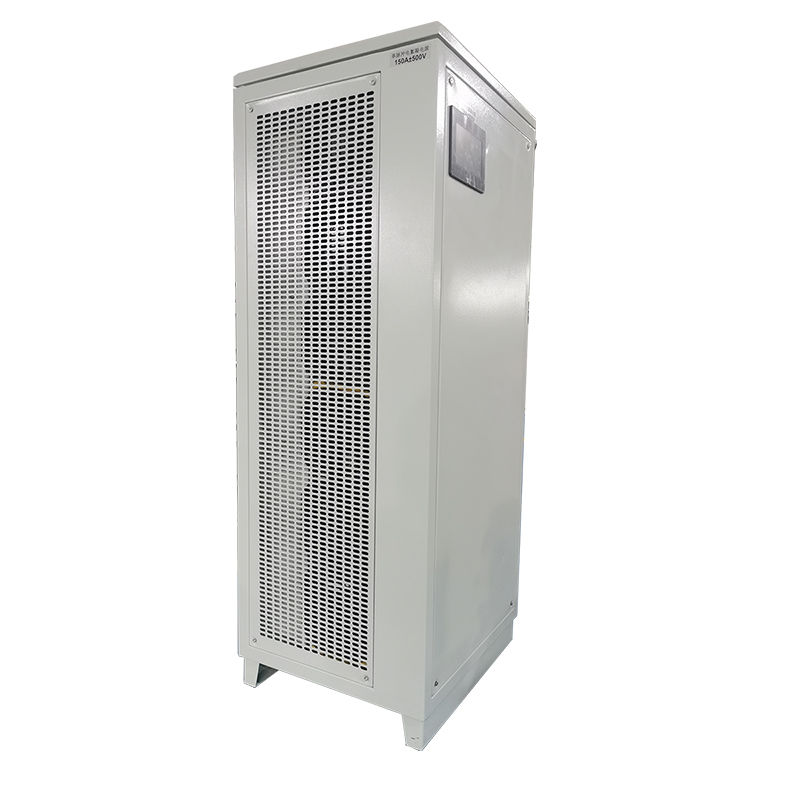

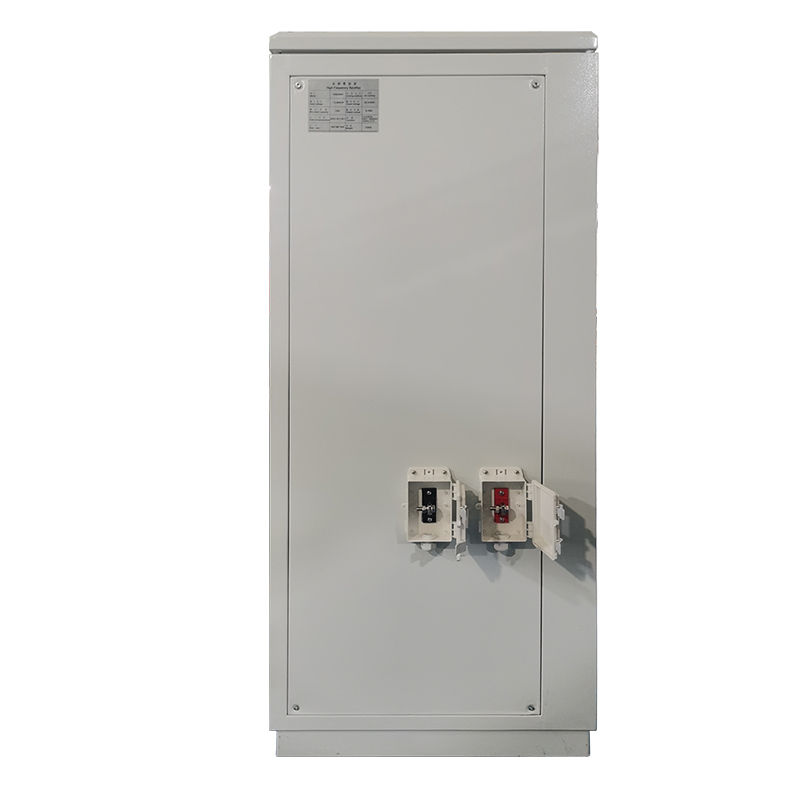

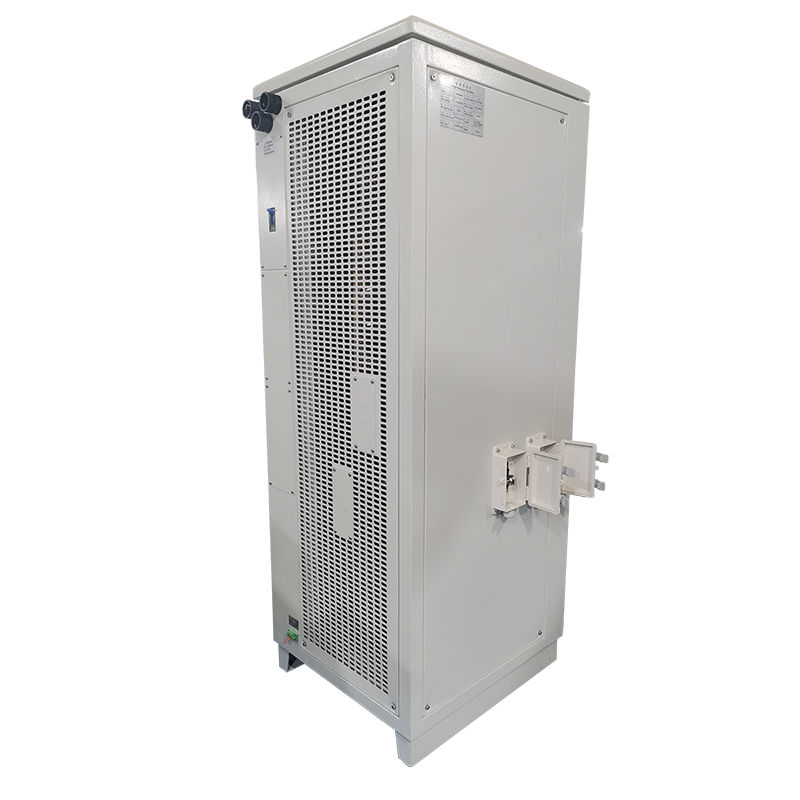

150A 500V Single-Pulse Electrocoagulation Rectifier

Product Parameters

• Product Specifications: Air-cooled 150A 500V Single-charge Flocculation Power Supply
• Input Voltage: Three-phase AC380V 50HZ
• Operating Mode: Constant current, constant voltage selectable
• Output Waveform: Pulse square wave, smooth wave (pure DC)
• Display Accuracy: 0.1A, 1V
• Peak Voltage Output: 0-500V High-precision digital input control
• Peak Current Output: 0-150A High-precision digital input control
• Frequency Mode: 500-2000Hz Digital input control
• Duty Cycle: 30-100% Digital stepless input control
• Product Functions:

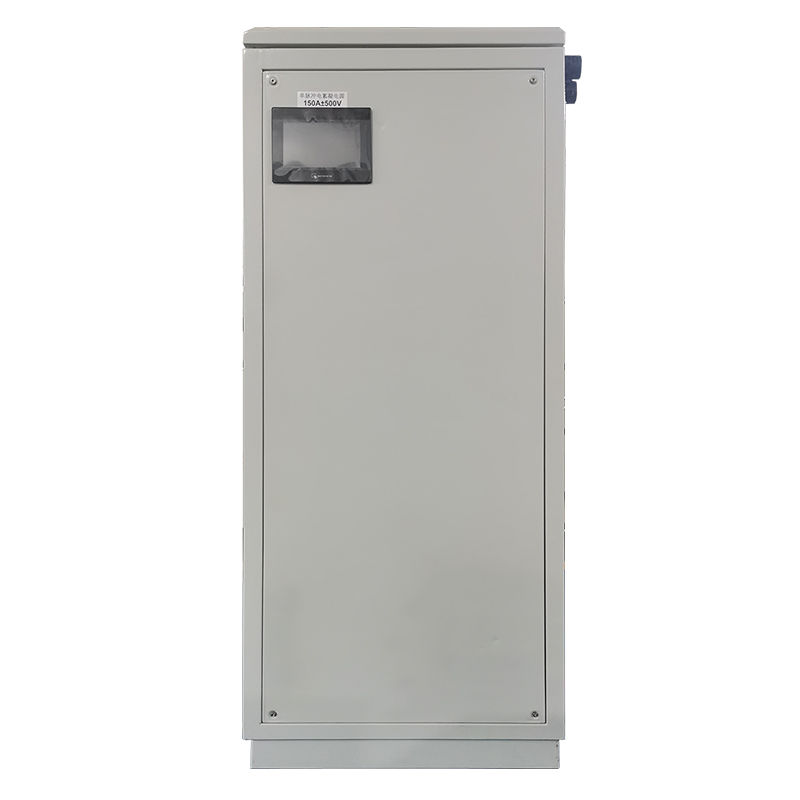

• 1.Local integrated embedded touchscreen (7-inch) control
• 2.Automatic cycle reversal, controlled and set by the local touchscreen panel: 1-9999 seconds or minutes selectable.
• 3.With RS485 communication protocol (MODBUS-RTU slave)
• 4.Added remote (run/stop) output passive hard contact control.

Commonly Used Water Treatment Power Supply Models (Custom models are available if not listed in the table).
Model	Output current A	Output voltage V	Power KW	Input current A	Input voltage V	Weight (KG)	Width W * Length L * Height H
GH10024	100A	24V	2.4	12	220	17	380*400*170
GH100100	100A	100V	10	17	380	40	450*500*225
GH120100	120A	100V	12	20	380	40	450*500*225
GH20015	200A	15V	3	15	220	17	380*400*170
GH20024	200A	24V	4.8	8	380	40	450*500*225
GH20036	200A	36V	7.2	12	380	40	450*500*225
GH20048	200A	48V	9.6	16	380	40	450*500*225
GH200100	200A	100V	20	33	380	130	510*580*920
GH30024	300A	24V	7.2	12	380	40	450*500*225
GH30036	300A	36V	10.8	18	380	40	450*500*225
GH30048	300A	48V	14.4	24	380	95	510*580*690
GH300100	300A	100V	30	50	380	130	510*580*920
GH33030	330A	30V	9.9	16.5	380	40	450*500*225
GH40030	400A	30V	12	20	380	40	450*500*225
GH50024	500A	24V	12	20	380	95	510*580*690
GH50036	500A	36V	18	30	380	95	510*580*690
GH50048	500A	48V	24	40	380	95	510*580*690
GH50012	500A	12V	6	10	380	45	380*400*170
GH60048	600A	48V	28.8	48	380	95	510*580*920
GH100024	1000A	24V	24	40	380	95	510*580*690
GH100036	1000A	36V	36	60	380	130	510*580*920
GH100048	1000A	48V	48	80	380	130	510*580*920
GH100012	1000A	12V	12	20	380	45	480*525*310
GH200024	2000A	24V	48	80	380	130	510*580*920
GH300024	3000A	24V	72	120	380	165	530*600*1200
GH4000100	4000A	100V	400	667	380	195	580*650*1400
GH800036	8000A	36V	288	480	380	235	600*680*1600
GH1000036	10000A	36V	360	600	380	260	800*1350*1510

Key Features

This product is a professional electrocoagulation power supply built on advanced pulse power technology. Breaking through the limitations of traditional DC electrocoagulation, it outputs precise single-pulse power with a high current of 100A and a high voltage of 500V. While efficiently removing heavy metals and recalcitrant organic matter, it significantly suppresses side reactions and reduces electrode passivation, ultimately achieving the triple goals of energy saving, improved treatment efficiency, and reduced operating costs. It is an ideal choice for upgrading electrocoagulation technology.

Structure

The water treatment power supply primarily consists of a rectifier-filter circuit, a full-bridge converter circuit, a high-frequency transformer, a high-frequency rectifier-filter circuit, an auxiliary power circuit, and a main control unit. The main control unit circuit mainly comprises phase loss protection, temperature protection, overload protection, short-circuit protection, and a PWM circuit with PI regulation. The three-phase grid voltage is rectified and filtered after passing through the power switch, yielding a smoothed 520VDC supply for the inverter circuit. The inverter circuit primarily employs high-power MOSFET or IGBT modules to form a full-bridge converter. When the PWM output control signal drives the power modules through isolated drivers, two sets of diagonal transistors conduct alternately. This generates a high-frequency pulse voltage in the primary winding of the high-frequency transformer. The secondary voltage is transformed by the high-frequency transformer, rectified, and then supplies energy to the load.

Features

1. The power supply can operate in either voltage-regulated current-limited mode or current-regulated voltage-limited mode, with seamless switching between the two states.
2. DC output voltage regulation accuracy ranges from 50% to 100%. When input voltage fluctuates by 10% or load changes occur, the output voltage remains stable with regulation accuracy ≤0.5%.
3. Incorporates filtering functionality to prevent interference with instruments during power-up, eliminate grid pollution, and mitigate current inrush phenomena.
4. Phase Loss Protection: Automatically locks out when any phase is missing from the three-phase AC input. Resumes operation automatically after fault resolution.
5. Overcurrent Protection: Automatically enters overcurrent shutdown and alarm state when current exceeds rated value.
6. Short-circuit protection: In case of load short-circuit or internal component short-circuit, the circuit breaker automatically disconnects the power supply.
7. Over-temperature protection: When abnormal temperatures of semiconductor components (e.g., IGBT, Schottky diodes) reach ≥80°C, the electronic switch on the main control board activates, locking the power supply to effectively protect the unit.
