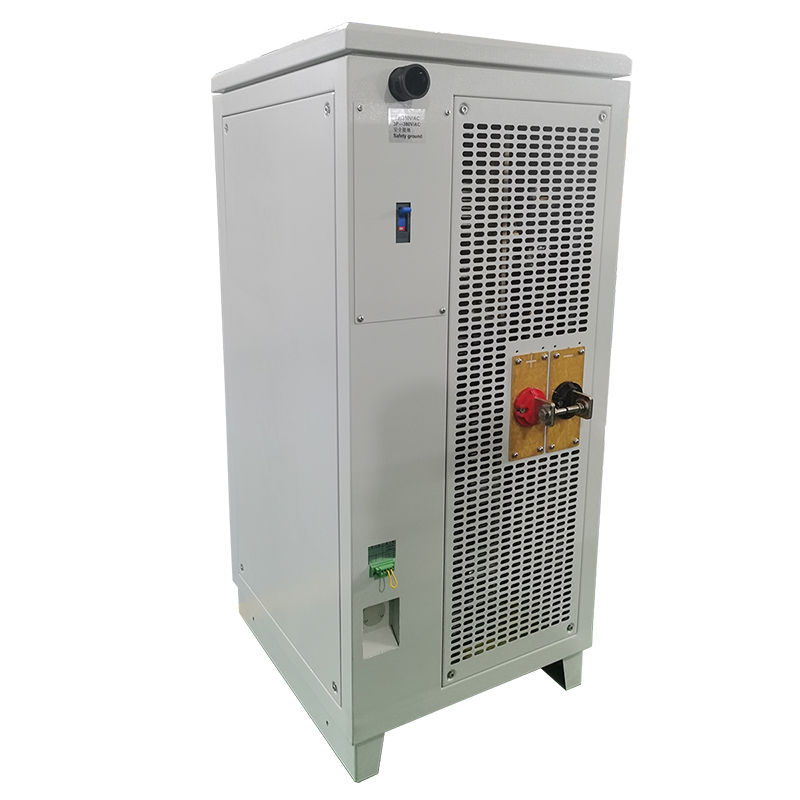

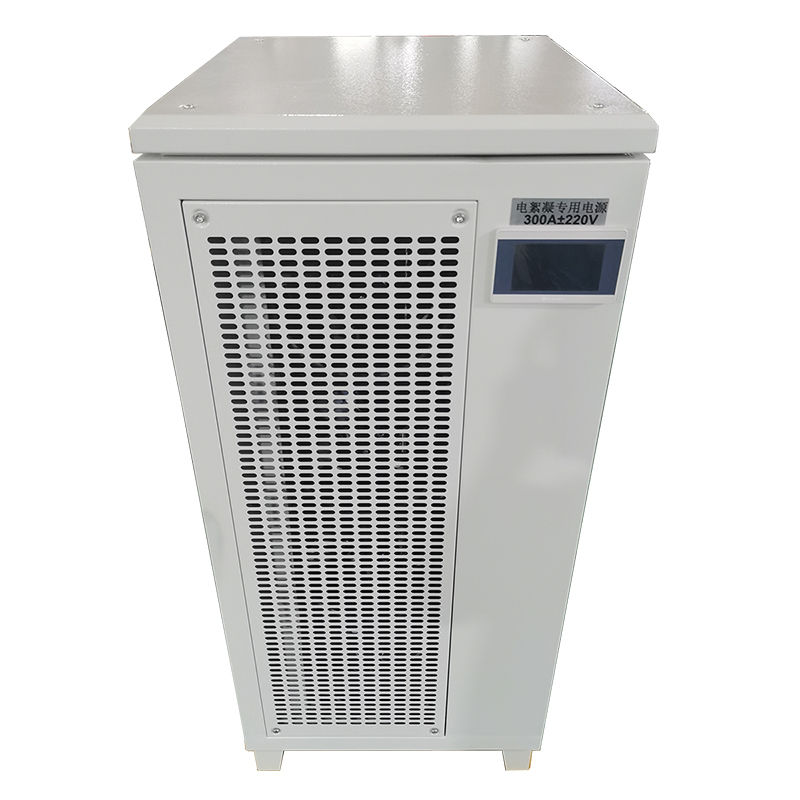

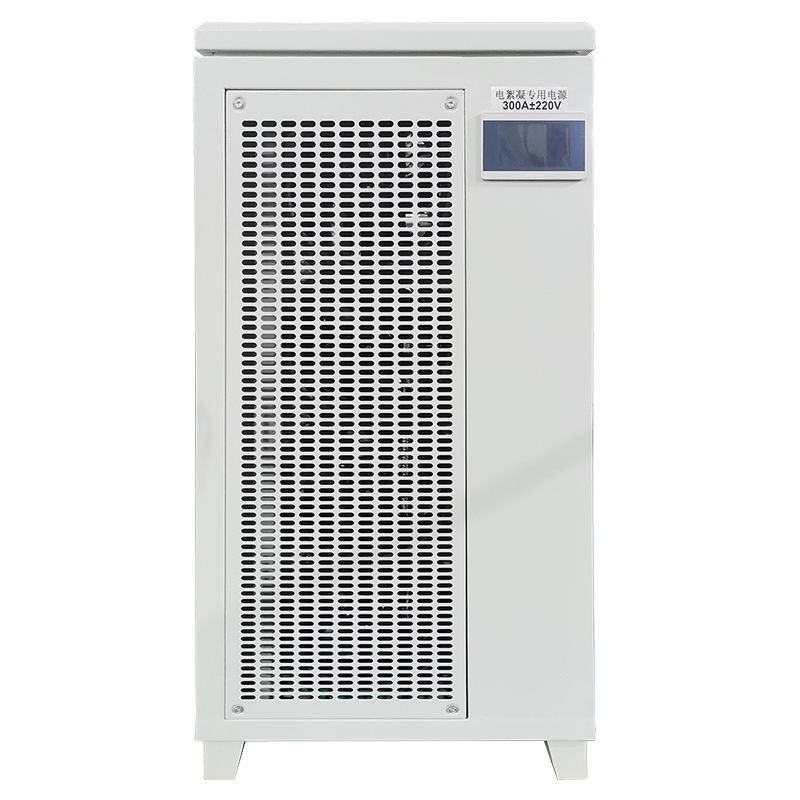

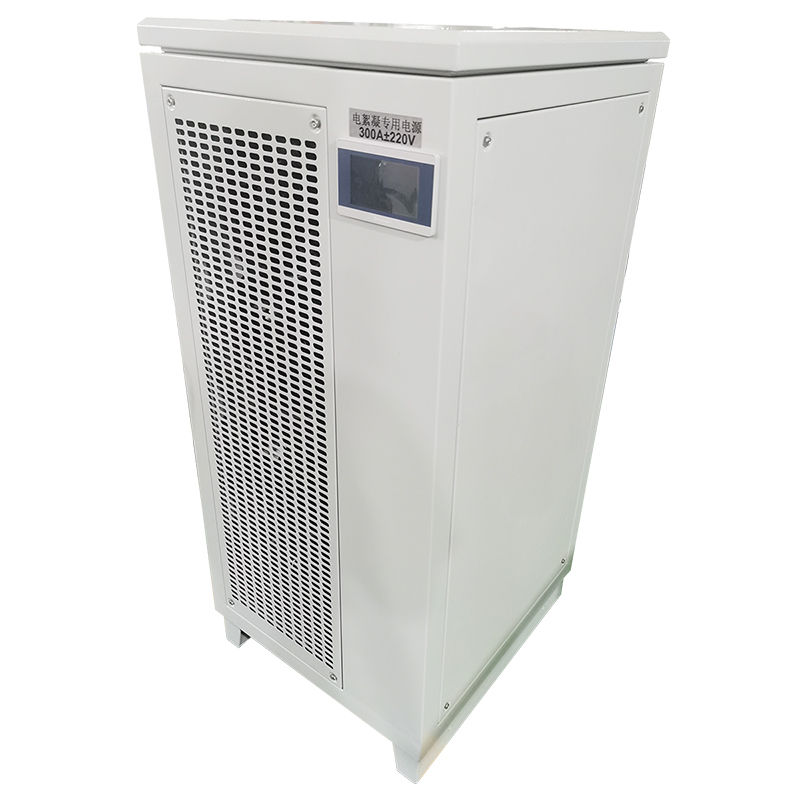

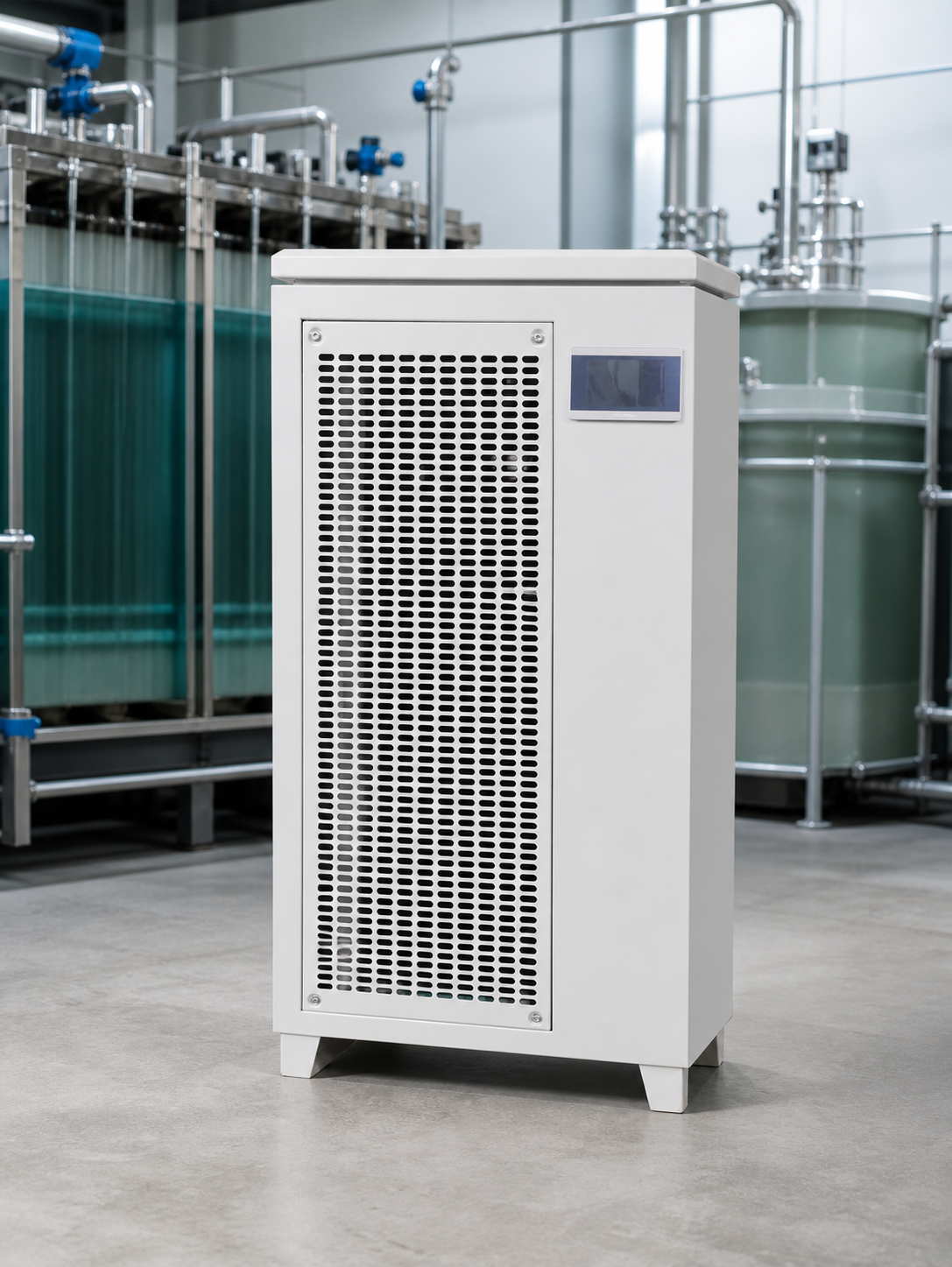

300A 220V electric phosphorus removal wastewater treatment equipment rectifier

Product Parameters

Features

• Local integrated embedded touchscreen (4.3-inch) control panel
• Remote (stop/resume) function terminal blocks (on resume, off stop)
• Automatic cycle reversal, controlled and set by local touchscreen panel: 1-9999 seconds or minutes selectable
• Employs energy-saving high-voltage reversing switch for non-destructive reversal
• Output uses high-quality tin-plated copper busbar for corrosion protection
• Includes RS485 communication function

Commonly Used Water Treatment Power Supply Models (Custom models are available if not listed in the table).
Model	Output current A	Output voltage V	Power KW	Input current A	Input voltage V	Weight (KG)	Width W * Length L * Height H
GH10024	100A	24V	2.4	12	220	17	380*400*170
GH100100	100A	100V	10	17	380	40	450*500*225
GH120100	120A	100V	12	20	380	40	450*500*225
GH20015	200A	15V	3	15	220	17	380*400*170
GH20024	200A	24V	4.8	8	380	40	450*500*225
GH20036	200A	36V	7.2	12	380	40	450*500*225
GH20048	200A	48V	9.6	16	380	40	450*500*225
GH200100	200A	100V	20	33	380	130	510*580*920
GH30024	300A	24V	7.2	12	380	40	450*500*225
GH30036	300A	36V	10.8	18	380	40	450*500*225
GH30048	300A	48V	14.4	24	380	95	510*580*690
GH300100	300A	100V	30	50	380	130	510*580*920
GH33030	330A	30V	9.9	16.5	380	40	450*500*225
GH40030	400A	30V	12	20	380	40	450*500*225
GH50024	500A	24V	12	20	380	95	510*580*690
GH50036	500A	36V	18	30	380	95	510*580*690
GH50048	500A	48V	24	40	380	95	510*580*690
GH50012	500A	12V	6	10	380	45	380*400*170
GH60048	600A	48V	28.8	48	380	95	510*580*920
GH100024	1000A	24V	24	40	380	95	510*580*690
GH100036	1000A	36V	36	60	380	130	510*580*920
GH100048	1000A	48V	48	80	380	130	510*580*920
GH100012	1000A	12V	12	20	380	45	480*525*310
GH200024	2000A	24V	48	80	380	130	510*580*920
GH300024	3000A	24V	72	120	380	165	530*600*1200
GH4000100	4000A	100V	400	667	380	195	580*650*1400
GH800036	8000A	36V	288	480	380	235	600*680*1600
GH1000036	10000A	36V	360	600	380	260	800*1350*1510

Overview

This is a smart industrial power supply designed specifically for harsh electrochemical environments. It integrates high-frequency inverter technology with a programmable automatic cycle reversal function, effectively preventing electrode scaling and passivation, significantly improving the stability and efficiency of continuous system operation. It is a revolutionary solution for scaling-prone processes such as electrodialysis and electrolysis.

Structure

The water treatment power supply primarily consists of a rectifier-filter circuit, a full-bridge converter circuit, a high-frequency transformer, a high-frequency rectifier-filter circuit, an auxiliary power circuit, and a main control unit. The main control unit circuit mainly comprises phase loss protection, temperature protection, overload protection, short-circuit protection, and a PWM circuit with PI regulation. The three-phase grid voltage is rectified and filtered after passing through the power switch, yielding a smoothed 520VDC supply for the inverter circuit. The inverter circuit primarily employs high-power MOSFET or IGBT modules to form a full-bridge converter. When the PWM output control signal drives the power modules through isolated drivers, two sets of diagonal transistors conduct alternately. This generates a high-frequency pulse voltage in the primary winding of the high-frequency transformer. The secondary voltage is transformed by the high-frequency transformer, rectified, and then supplies energy to the load.

Features

1. The power supply can operate in either voltage-regulated current-limited mode or current-regulated voltage-limited mode, with seamless switching between the two states.
2. DC output voltage regulation accuracy ranges from 50% to 100%. When input voltage fluctuates by 10% or load changes occur, the output voltage remains stable with regulation accuracy ≤0.5%.
3. Incorporates filtering functionality to prevent interference with instruments during power-up, eliminate grid pollution, and mitigate current inrush phenomena.
4. Phase Loss Protection: Automatically locks out when any phase is missing from the three-phase AC input. Resumes operation automatically after fault resolution.
5. Overcurrent Protection: Automatically enters overcurrent shutdown and alarm state when current exceeds rated value.
6. Short-circuit protection: In case of load short-circuit or internal component short-circuit, the circuit breaker automatically disconnects the power supply.
7. Over-temperature protection: When abnormal temperatures of semiconductor components (e.g., IGBT, Schottky diodes) reach ≥80°C, the electronic switch on the main control board activates, locking the power supply to effectively protect the unit.
